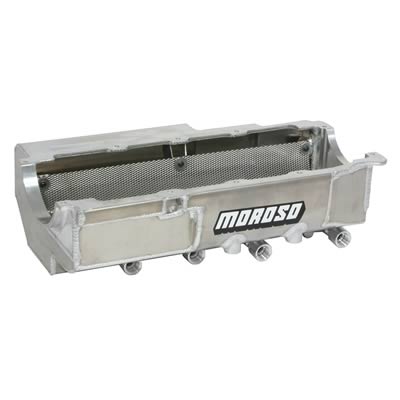

Moroso Ultra-Pro Aluminum Pro Modified Oil Pans 21581

Original price was: $1,355.99.Current price is: $1,220.39.

Oil Pan, Drag Race, Aluminum, Stage IV, Dry Sump, Chevy Big Block, Each

Description

Overview

Brand:
Manufacturer’s Part Number:
21581
Part Type:
Product Line:
Summit Racing Part Number:
MOR-21581
UPC:
084663215810
Sump Style:
Dry
Oil Pan Style:
Drag Race
Rear Main Seal Style:
2-piece
Sump Location:
Full
Stroker Clearanced:
Yes
Maximum Stroke with OE Rod:
4.500 in.
Dipstick Provision:
No
Dipstick Included:
No
Oil Pan Depth (in.):
7.500 in.
Oil Pan Material:
Aluminum
Oil Pan Finish:
Natural
Baffled:
No
Kicked Out:
Yes
Windage Tray Included:
Yes
Pickup Included:
No
Oil Pump Included:
No
Oil Pump Driveshaft Included:
No
Crank Scraper Included:
Yes
Drain Plug Thread Size:
1/2 in.-20
Gaskets Included:
No
Hardware Included:
No
Quantity:
Sold individually.
Notes:
Accepts 5 in. stroke with aluminum rods.

Moroso Ultra-Pro Aluminum Pro Modified Oil Pans

Moroso Ultra-Pro aluminum Pro Modified oil pans have all of the features and designs that you need for your high-horsepower engine. They have a removable bottom section that provides quick, between-rounds access to inspect main bearings and replace pistons without removing the entire oil pan. The removable section uses a machined channel, which accommodates a reusable square O-ring rubber gasket to provide leak-free sealing. The Moroso Ultra-Pro aluminum Pro Modified oil pans are box-style, all-aluminum pans featuring a maximum-size power kickout, a unidirectional windage tray screen, a block-high crankshaft scraper, and internal baffling. Designed for 2-piece rear main seal Donovan-style big block Chevrolet engines, Moroso Ultra-Pro aluminum Pro Modified oil pans give you the strength, reliability, and access that you need for your engine.

Oil Pan, Drag Race, Aluminum, Stage IV, Dry Sump, Chevy Big Block, Each
